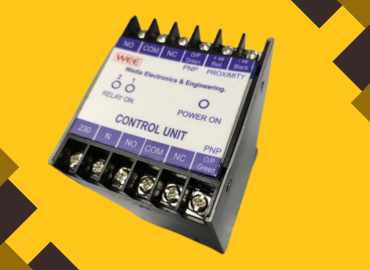

2 Relay PNP Output

The 2 Relay PNP Output module by WEE (Wadia Electronics and Engineering) is an industrial automation device designed for single-phase electric applications. Here’s a breakdown of its features and specifications:

Brand & Model:

  • Brand: WEE (Wadia Electronics and Engineering)

  • Type: PNP Proximity Control Unit

This module is ideal for 230V AC control systems requiring PNP logic outputs with relay isolation. If you need wiring diagrams or specific relay ratings (e.g., contact current), checking the datasheet would be helpful.

Would you like assistance with wiring or integration?

Applications:

  • Industrial automation

  • Machine control systems

  • Safety interlocks

  • Motor/load switching

Key Features:

  • Output Type: PNP (Sourcing) relay output (suitable for PLCs and control systems)

  • Number of Relays: 2

  • Automation Grade: Automatic (for industrial control applications)

  • Material: ABS Plastic (durable and lightweight housing)

Electrical Specifications:

  • Power Source: Electric

  • Voltage: 230V AC (single-phase)

  • Frequency: 50 Hz (standard for many regions)

  • Correction Resistance: Yes (likely includes noise suppression or load correction)

Functionality:

  • Relay On: Indicates relay activation status

  • Power On: LED or indicator for power supply status

  • Usage: Designed for electric industries (motor control, switching, automation tasks)
