A versatile and robust proximity sensor designed for non-contact detection of objects in industrial environments. Compatible with both PNP (sourcing) and NPN (sinking) output configurations, it offers Normally Open (NO) or Normally Closed (NC) functionality for flexible integration.

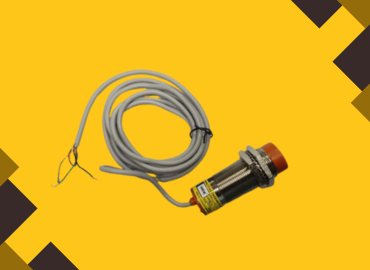

3 Wire Type
Applications
-
Industrial Automation: Conveyor systems, material handling.
-
Manufacturing: Level detection, part presence verification.
-
Process Control: Liquid/particle detection in tanks or pipelines.
Why Choose This Sensor?
✔ Flexible wiring (PNP/NPN) for PLC/compatibility.
✔ High reliability with IP68-rated housing.
✔ Customizable cable length (on request).
Key Features
-
Dual Output Options: PNP (+ve) or NPN (−ve) configurations.
-
NO/NC Functionality: Adaptable to diverse control logic requirements.
-
Non-Contact Detection: Reliable sensing without physical interaction.
-
Industrial Durability: Chrome-plated brass housing with IP68 protection for harsh environments.
-
Smart Protections: Built-in short-circuit and reverse polarity protection.
-
Visual Indication: LED status indicator for real-time monitoring.
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Switching Distance | 8 mm to 15 mm (adjustable) |
| Hysteresis | 5–10% of sensing distance |
| Repeatability | 5–10% of sensing distance |
| Operating Voltage | 10–30V DC |
| Current Consumption | <10 mA @ 30V DC |
| Switching Current | Max 300 mA |
| Switching Frequency | 1 kHz |
| Cable Length | 3-core, 2 meters (customizable) |
| Mounting | Non-flush (shielded) |
