Safety Guards

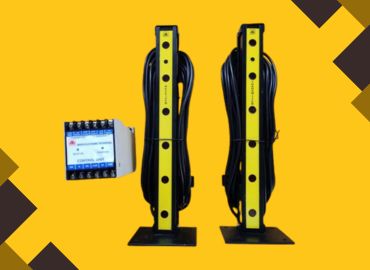

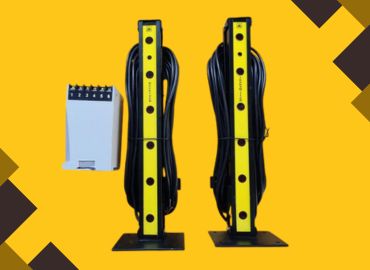

Wadia Electronics & Engineering’s Safety Guard is an infrared (IR) beam-based protection system designed to prevent unauthorized access to hazardous machine zones, reducing workplace accidents in industrial environments.

🔹 Features & Benefits

✅ Infrared Beam Detection – Invisible light curtain for non-contact safety.
✅ Machine Safety Compliance – Prevents accidents in presses, shears, CNC machines, etc.
✅ 220V AC, 5A Rating – Supports heavy-duty industrial machines.
✅ LED Status Indicator – Immediate visual feedback on operation.
✅ Corrosion-Resistant Housing – Long-lasting in tough environments.
✅ Compact & Modular – Easy to install in tight spaces.

🔹 Why Choose This Safety Guard?

✔ Non-Contact Safety – No physical barriers needed.
✔ Fast Response Time – Immediate machine shutdown on detection.
✔ Industrial-Grade Durability – Resists dust, moisture, and corrosion.
✔ Compliance with Safety Standards – Reduces workplace hazards.

🔹 Key Specifications

✔ Type: Infrared (IR) Safety Light Curtain
✔ Color: Black & Yellow (high-visibility safety design)
✔ Sensors: Infrared (invisible light beams)
✔ Voltage: 220V AC (industrial power supply)
✔ Current Rating: 5A (supports high-load machines)
✔ Frequency: 50 Hz (standard industrial compatibility)
✔ Effective Range: 5 Mtr (detection distance)
✔ Output Indication: LED (status visibility)
✔ Power Source: Electric (AC)
✔ Corrosion Resistance: Yes (durable in harsh environments)
✔ Dimensions (Standard): 35 × 35 × 300 mm
✔ Thickness: 26mm (slim profile for easy mounting)

🔹 How It Works

  1. Transmitter emits invisible infrared beams.

  2. Receiver detects the beams.

  3. If any beam is interrupted (by a hand, object, or person), the system triggers an emergency stop (E-stop) or alarm.

  4. LED indicator shows system status (active/fault).

🔹 Typical Applications

🛑 Power Presses – Prevents hand injuries during operation.
🛑 Robotic Cells – Ensures safe human-robot interaction.
🛑 Conveyor Systems – Stops machinery if obstruction detected.
🛑 Shearing & Bending Machines – Avoids accidental activation.
🛑 Packaging & Assembly Lines – Worker safety in automated zones.
