Timer Control Unit

WEE Timer Control Unit – 230V, 30s Range (PNP Proximity Sensing)

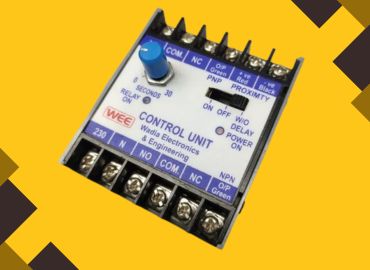

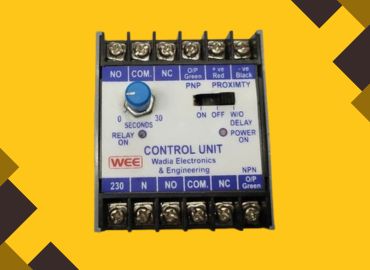

This Timer Control Unit by WEE (Wadia Electronics & Engineering) is an industrial-grade, time-delay relay module with PNP proximity sensor input and a 30-second adjustable timer. It is designed for automated switching applications in electric industries.

🔹 How It Works

  1. PNP/NPN Proximity Sensor detects an object (metal/non-metal, depending on sensor type).

  2. The timer circuit activates, delaying the relay output for up to 30 seconds.

  3. After the set delay, the relay switches (ON/OFF), controlling connected devices (motors, solenoids, lights).

🔹 Applications

✔ Time-Delay Switching (conveyors, pumps, machinery)
✔ Automated Batch Processing (industrial mixing, filling systems)
✔ Safety Interlocks (delay before machine start/stop)
✔ Motor Control (soft-start, delayed shutdown)

🔹 Key Features & Specifications

📌 General Details

  • Brand: WEE (Wadia Electronics & Engineering)

  • Automation Grade: Automatic (for industrial control)

  • Material: ABS Plastic (durable & corrosion-resistant)

  • Usage: Electric Industries (motor control, machinery, automation)

⚡ Electrical Ratings

  • Rated Voltage: 230V AC (Single Phase)

  • Power Source: Electric (mains-powered)

  • Frequency: 50Hz (standard)

  • Timer Range: 30 seconds (adjustable, likely via potentiometer)

  • Corrosion Resistance: Yes (suitable for harsh environments)

🔄 Control Logic

  • Input Type: PNP/NPN Proximity Sensor (for object detection)

  • Output: Relay (NO/NC contacts for switching)

  • Indicators:

    • Power On (unit is energized)

    • Relay On (indicates relay activation)
